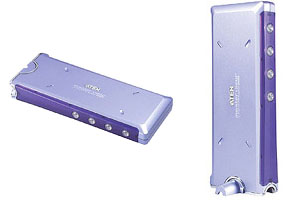

ATEN CS74AC--4 Port Free-Standing Slim KVM w/ 4cables (CS-74AC)


Features
* Control 4 computers from a single PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse)
* Compact vertical-standing design - custom connector layout
* Custom ASIC for enhanced performance (CS-74A)
* Power On detection - automatically switches to the first powered On port
* SPDB-15 connectors for KVM cable connection to the computers & console
* Auto scan function to monitor computer operation
* LED display for easy status monitoring (CS-74A)
* Easy installation- no software required (CS-74A)
* Hot pluggable - add or remove computers without powering down the switch (CS-74A)
* Keyboard and mouse emulation for error free booting
* Caps lock, num lock, and scroll lock states are saved and restored when switching
* Supports Microsoft IntelliMouse and the scrolling wheel on most mice
* Superior vide quality - up to 1920 x 1440; DDC, DDC2, DDC2B
* Non powered
* Warranty: one year
Function
Specification
PC Connection
4
Port Selection
Hot Keys / Pushbuttons Switch
LEDs
Selected
4
Emulation
Keyboard
PS/2; PC/AT
Mouse
PS/2
Connectors
Keyboard
1 x 6 pin mini-DIN Female (PS/2)-Console
2 x 6 pin mini-DIN Female (PS/2)-CPU Port
Mouse
1 x 6 pin mini-DIN Female (PS/2)-Console
2 x 6 pin mini-DIN Female (PS/2)-CPU Port
Video
1 HDB-15 Female (Std. VGA/SVGA)-Console
2 HDB-15 Male (Std. VGA/SVGA)-CPU Port
VGA Resolution
1920 x 1440 (Max.); DDC2B
Power Consumption
DC 5V 20mA (Max.)
Scan Interval
3 sec.
Housing
Plastic
Weight
250 g
Dimensions ( L x W x H )
187 x 87 x 28.5 mm




Availability: Usually ships the same business day

CS-74Regular price: $208.99EchoStore Price: $72.99
